Cracking Wall in Fayette, ME Basement Sealed and Supported with FlexiSpan & PowerBrace Installations

When one of the walls in their basement began to bow and crack, this Fayette, ME homeowner called us at TC Hafford Basement Systems to solve the problem before it got worse! We set them up with a free estimate where our sales representative was able to explain to the homeowner, in detail, just how we could seal these cracks and prevent more cracks from forming in the future. Once our installation crew arrived at the home, they got started on sealing the cracks right away. To install FlexiSpan seals over each crack, a primary layer of sealant was first applied within the cracks. A thin foam pad was laid along the cracks over the first layer of sealant. To finish the seal, a second layer of sealant was applied over the top of the foam core, creating FlexiSpan seals covering each crack. These seals benefit from the foam core by being able to contort to any slight changes in the wall, maintaining their water-tight seal. Next, to prevent future bowing of the wall, PowerBrace beams were attached to the floor and spaced out along the problem-wall. These beams were then tightened against the wall using their adjustable fixtures anchored to the joists above the basement.

With the cracks sealed and their wall locked back to its original position, this homeowner will no longer need to worry about any moisture or structural problems developing in their basement. The FlexiSpan seals & PowerBrace supports will protect this basement for years into the future!

SuperSump Upgrade Protects Bath, ME Basement from Flooding

With a black mold growing in their basement and regular flooding after rainfall, this Bath, ME homeowner was looking for a solution! They called us at TC Hafford Basement Systems and following their free estimate from our sales representative, they hired us to get started on upgrading their failing sump as soon as possible. Once our installation crew arrived at the home, they were able to begin work on the basement by excavating a shallow trench into the perimeter of the floor. This trench opened enough space to lay WaterGuard piping down around the basement. After sealing these pipes in place with a fresh layer of concrete, they will act to intercept any moisture leaking through the foundation in the future. This collected water is guided through the WaterGuard to the SuperSump pump installed where the old pump had been. The SuperSump system is able to remove over 2,600 gallons of water from the home every hour. This water flow out of the home through a PVC discharge line protected by an IceGuard segment just outside the home. The IceGuard is built in a way that provides any water blocked by ice or debris a way to escape the line without backing up into the basement.

With an upgraded sump pump, this homeowner should no longer experience a flooding basement after any rainfall. Their new WaterGuard system will maintain a dry basement floor for years to come!

Home In Arrowsic Gets The Help It Needs

This crawlspace in Arrowsic Maine needed some love so the homeowner contacted TC Hafford Basement Systems to get the job done. Our System Design Specialist Daryl met with the homeowner and after analyzing the issues in the crawl space, designed a system that would meet the homeowners needs. Utilizing CleanSpace, Drainage Matting, SprayFoam and a SmartSump, this crawl space will now be protected. With this system, the homeowner will have peace of mind knowing that the CleanSpace encapsulates the crawl space and water collected by the SuperSump will be moved far from the house through a buried discharge line where it will no longer be a problem.

Wet Dirt Floor Crawl Space with Freezing Pipes Transformed

This crawl space in Bath, ME, was giving the homeowner a laundry list of issues that were causing them to spend money on costly repairs. Concerned about the water in their crawl space and pipes freezing during the winter months, this homeowner decided to take action and book a free estimate with TC Hafford Basement Systems. System Design Specialist Nick Ciciarelli worked with the homeowner to design a complete encapsulation system that would take care of the dirt floor, drafty walls, and the water coming into their basement.



The area was regraded, and Drainage Matting was laid on the ground to create an inorganic barrier between the dirt and the new Slab that needed to be poured. Before the new Slab could be poured, WaterGuard was installed around the perimeter to catch and channel water to the brand new TripleSafe Sump Pump with Battery Backup. The water has to go somewhere, so the TripleSafe is connected to an Exterior Buried Discharge that is protected against ice buildup with IceGuard installed. With the crawl space waterproofed, the new Slab was able to be poured, and SprayFoam was installed along the rim joists and walls where needed to insulate the crawl space and protect the pipes underneath the home from freezing. The last step in setting up this crawl space for success was the installation of a SaniDry Sedona Dehumidifier that drains directly to the TripleSafe so the homeowner never has to empty a bucket and the crawl space stays at a safe humidity level all the time.



Now the homeowner is happy knowing their crawl space is no longer a nightmare and their home and family will be safer and healthier.

Damp Crawl Space and Wet Basement Combo in Arrowsic, ME

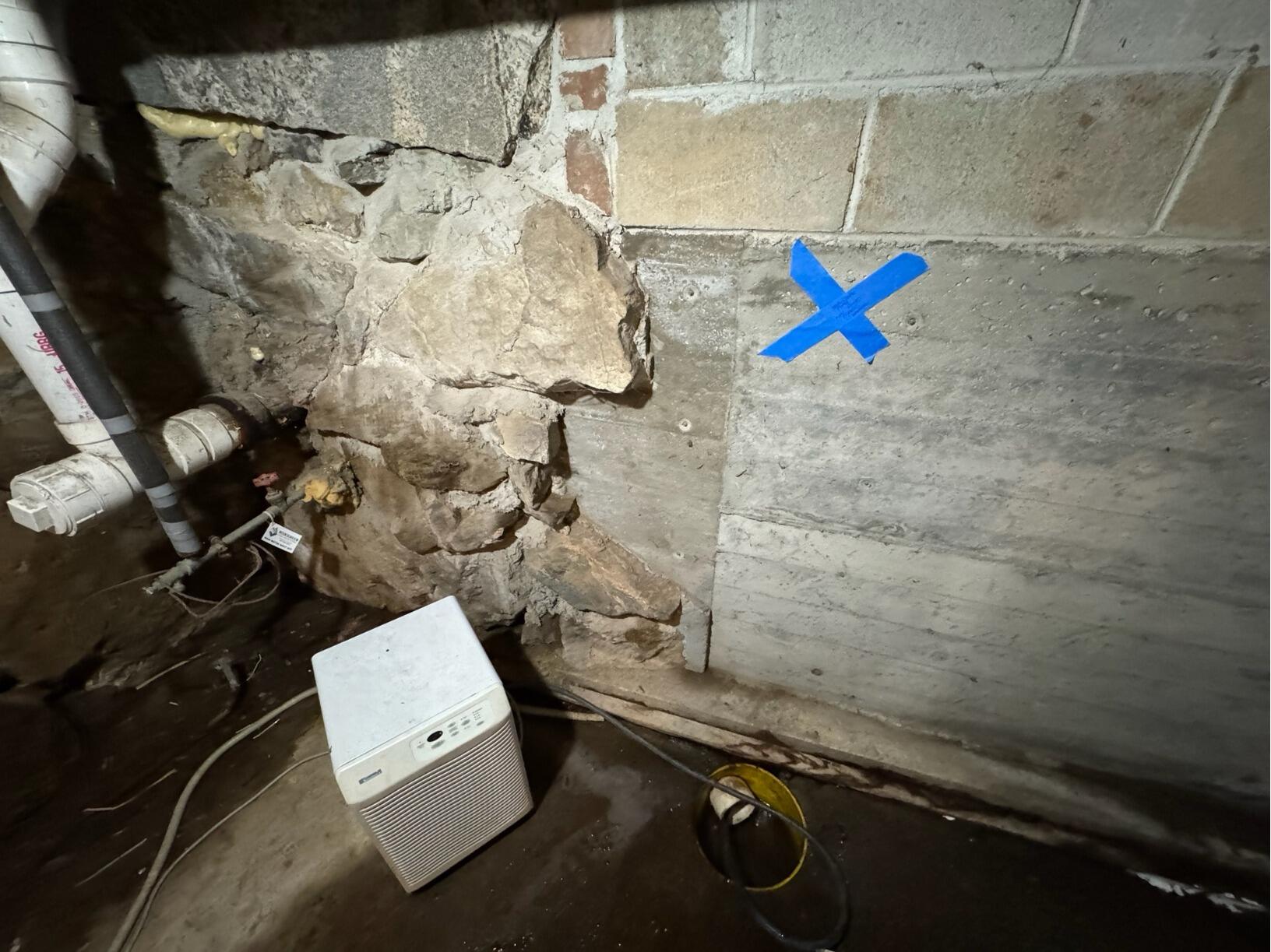

This Arrowsic, ME, homeowner has been dealing with moisture under their home, leading to mold and ruined belongings. Their basement would leak when it rained, and their crawl space was almost constantly damp with a musty odor. The homeowner loved their home and wanted to protect it and their belongings from further damage, so they reached out to TC Hafford Basement Systems for a free estimate. System Design Specialist Michael Madore met with the homeowner and worked with them to design a waterproofing system that would completely revitalize and protect the home.

Waterproofing the Basement

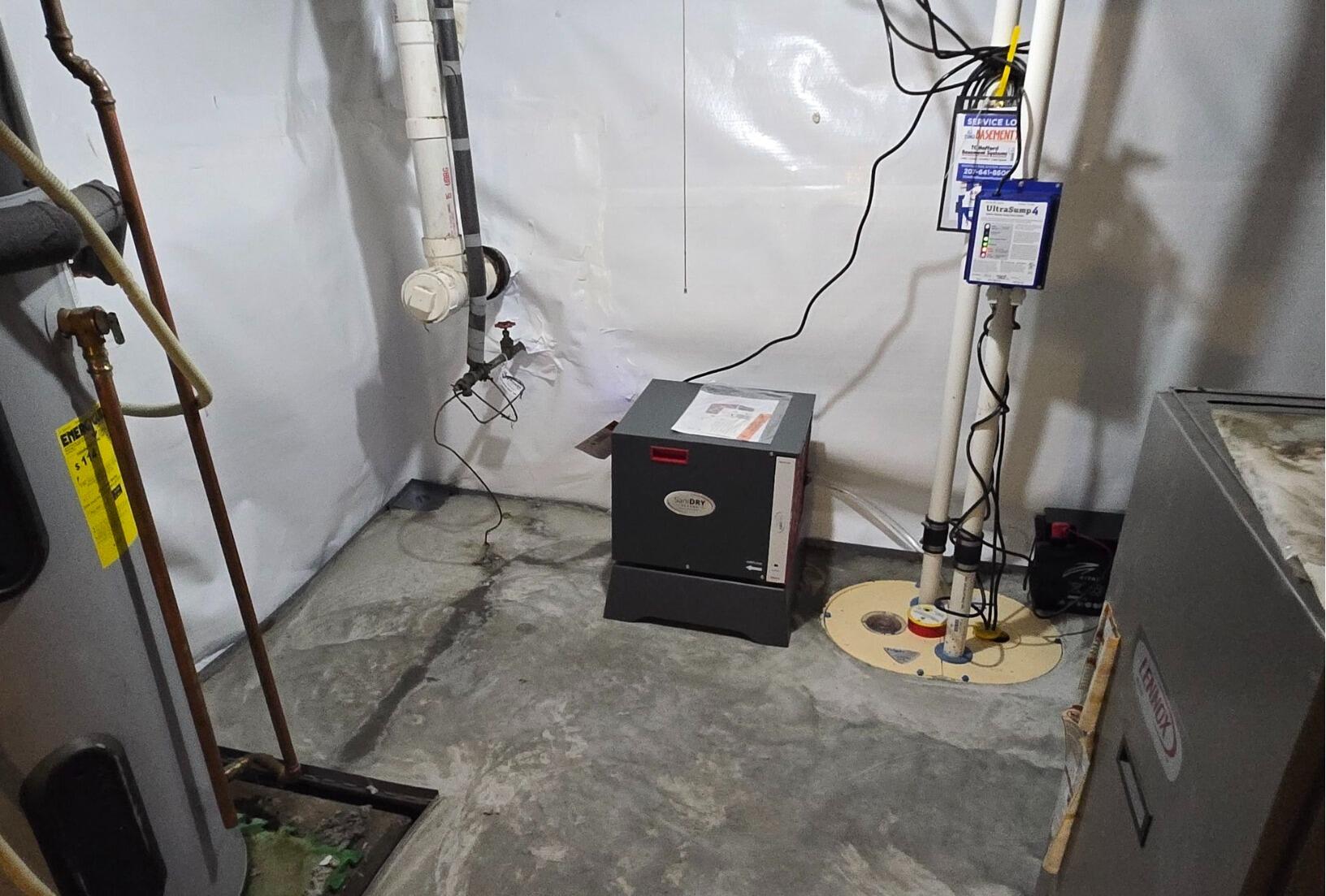

To take care of the water in the basement, WaterGuard Perimeter Drain was installed to collect and channel water in the problem areas and channel it to the new TripleSafe Sump Pump. The TripleSafe holds two Zoeller sumps with an additional Battery Powered Backup sump to protect the homeowner in the case of a power outage. The TripleSafe drains through an Exterior Buried Discharge line that takes the water far from the home. The system is protected against ice buildup with the installation of IceGuard, keeping the system running during the winter. Next, SprayFoam was installed to insulate the area, keeping cold air out and making the entire home more energy efficient. A SaniDry Sedona Dehumidifier was installed and connected to the TripleSafe so instead of having to empty a bucket of water when it fills, the SaniDry drains to the TripleSafe, keeping the humidity at a safe level all of the time.

Encapsulating the Crawl Space

Sealing up the crawl space and keeping moisture out was the next, so CleanSpace with Drainage Matting was installed. After regrading the area, Drainage Matting was laid down and is designed with large dimples to elevate the CleanSpace and channel water to the new SuperSump that was installed. CleanSpace was then installed and attached to the walls to seal up the crawl space. CleanSpace is a durable vapor barrier that keeps moisture and creatures out and reflects light to brighten the area, making it perfect for storage.

Now the home is protected against water damage, and the family no longer has to worry about breathing in mold or dealing with musty odors. Their basement and crawl space are set up to be used for storage without the risk of their belongings or appliances being damaged.
