Before & After Photos

Leaky ducts and poor insulation left this Tinton Falls, NJ, home uncomfortably cold in winter and unbearably warm in summer. We addressed this by encapsulating the ducts with SilverGlo foam boards. Any remaining gaps and leaks were sealed with orange ZypFoam sealant, effectively eliminating air leaks. The newly insulated ducts now efficiently carry conditioned air at the proper temperature. This prevents energy loss to the unconditioned attic and reduces exposure to extreme temperature fluctuations. Finally, we installed TruSoft cellulose insulation to an optimal R-60 value and ensured proper attic ventilation with baffle vents. The result is a more comfortable, energy-efficient home. The heating and cooling systems no longer have to work overtime.

Before:

This image shows our customer’s crawl space exposed dirt floor and the lack of proper insulation. The homeowner stored some old paint cans in the crawl space with open bags of concrete mix and a few other miscellaneous items. With excessive heat in the summers, these exposed paint cans have created hazardous fumes or chemicals. We also have exposed earth in the crawl space which emits radiant gasses.

After:

To complete this crawl space we used our CleanSpace Encapsulation System with our TerraBlock Floor Insulation and our SilverGlo Board Insulation. The CleanSpace Encapsulation System now eliminates any radon gasses from emitting from the exposed earth which is now covered with the CleanSpace liner. Our CleanSpace liner is 20 mil which provides a durable protective layer to the crawl space. Using our Orange ZypFoam we sealed the seams or any gaps of the SilverGlo Board Insulation. The SilverGlo board insulation are fastened to the foundaional walls to help radiate heat back to the source.

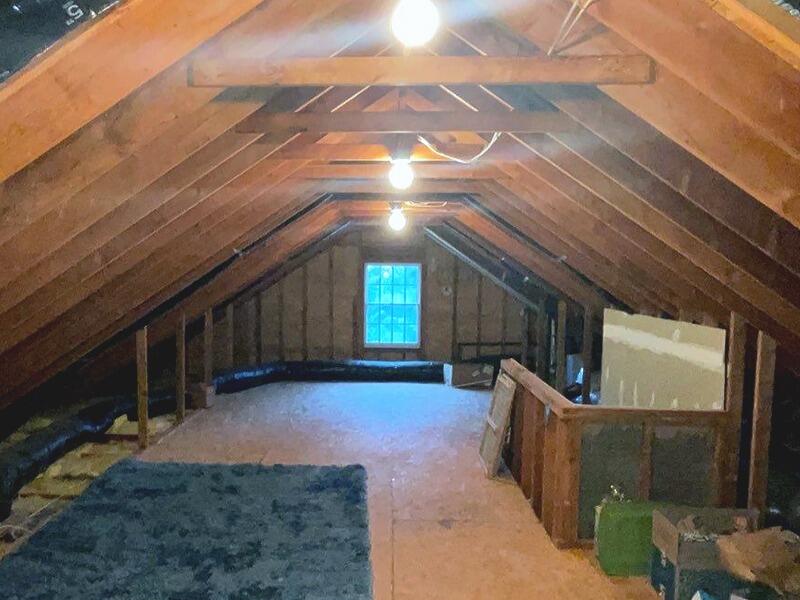

Upgrading insulation and access to the homes heating and cooling system in the attic of this 1954 built small ranch style home in Pt. Pleasant NJ.  The before picture here shows an attic with virtually no effective insulation, numerous recessed lights and many electrical wire penetrations. All these penetrations are holes that let heat out in the winter and heat in, in the summer. The predominate insulation was the original 3" fiberglass batts with many gaps, voids and depressions.  The 3" fiberglass batts in a perfect world would yield an insulation value of approx R-11.   However being in pretty poor condition from years of use and many remodeling projects in the living space below the effective insulation value would be less than R-6.  Two things, #1 the higher the R-Value the more resistant to heat flow through the material and #2  Today's recommended R-Values in our climate are from R-49 (minimum) to R-60 (optimum).

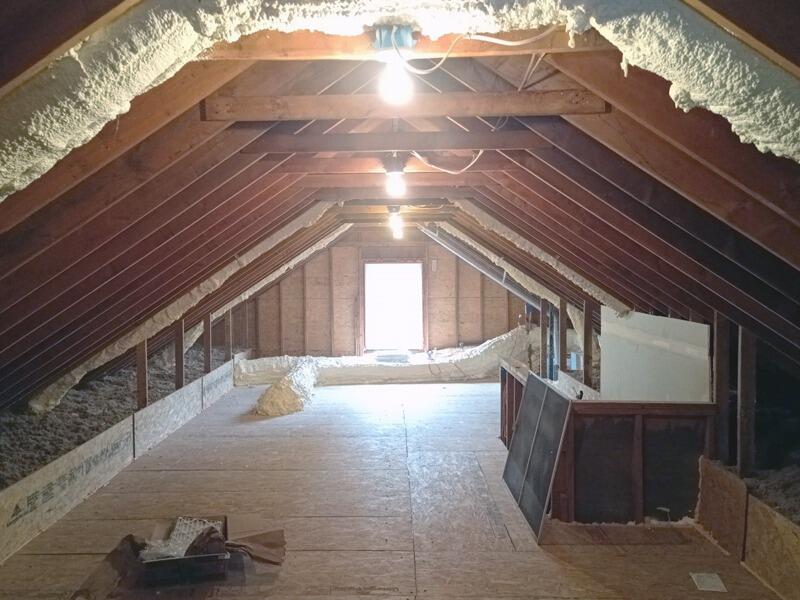

The after picture shows a properly air sealed and insulated attic to R-60 with a well defined sealed access deck to the heating and cooling system for service and possible replacement in the future.

The overall result of this project reduced excessive air leakage by a large percentage, increased insulation to R-60 with our patented Tru Soft cellulose insulation, reduced energy consumption by > 35% (as modeled as the New Jersey Clean Energy program), allowed great access to attic mechanical equipment and improved indoor air quality!     Note: The Tru Soft is very green, safe and healthy as well as out performs fiberglass insulation by 40%.

Contact us to find out how we can help improve your home's comfort, indoor air quality and energy consumption.

We inspected the owner’s house in Point Pleasant Beach, NJ, and found leaky ductwork, a poorly insulated attic, and the attic was not air sealed. To fix the leaky ductwork, we use our SilverGlo insulation panels to encapsulate the ducts. Using our orange ZypFoam sealant, our experts will air seal the floor, the seams of the newly installed SilverGlo, and any of the ductwork connections that may need additional attention. Next, we built catwalk dams or retaining walls along the attic floor to help contain our blown-in insulation. Finally, we blow in our TruSoft cellulose insulation to complete the attic. By air sealing, insulating the attic properly, and encapsulating the leaky ductwork, we have made this house more comfortable and energy efficient.

The clergy of First Assembly of God Church in Shrewbury reached out to Dr. Energy Saver to help solve their comfort issues above their rectory. Dr. Energy found their ducts were not getting the air to the conditioned space because of all of the air leakage in the ducts. They felt the ducts were blowing in hot air instead of the conditioned air that is supposed to come in. By encapsulating the ducts with 2" polyisocyanurate foam board and sealing it them with closed cell spray foam Dr. Energy completely maximized the efficiency of the duct system. Maximizing the efficiency of the duct system ensures that no air will escape and all will reach the conditioned space keeping the occupants comfortable.
